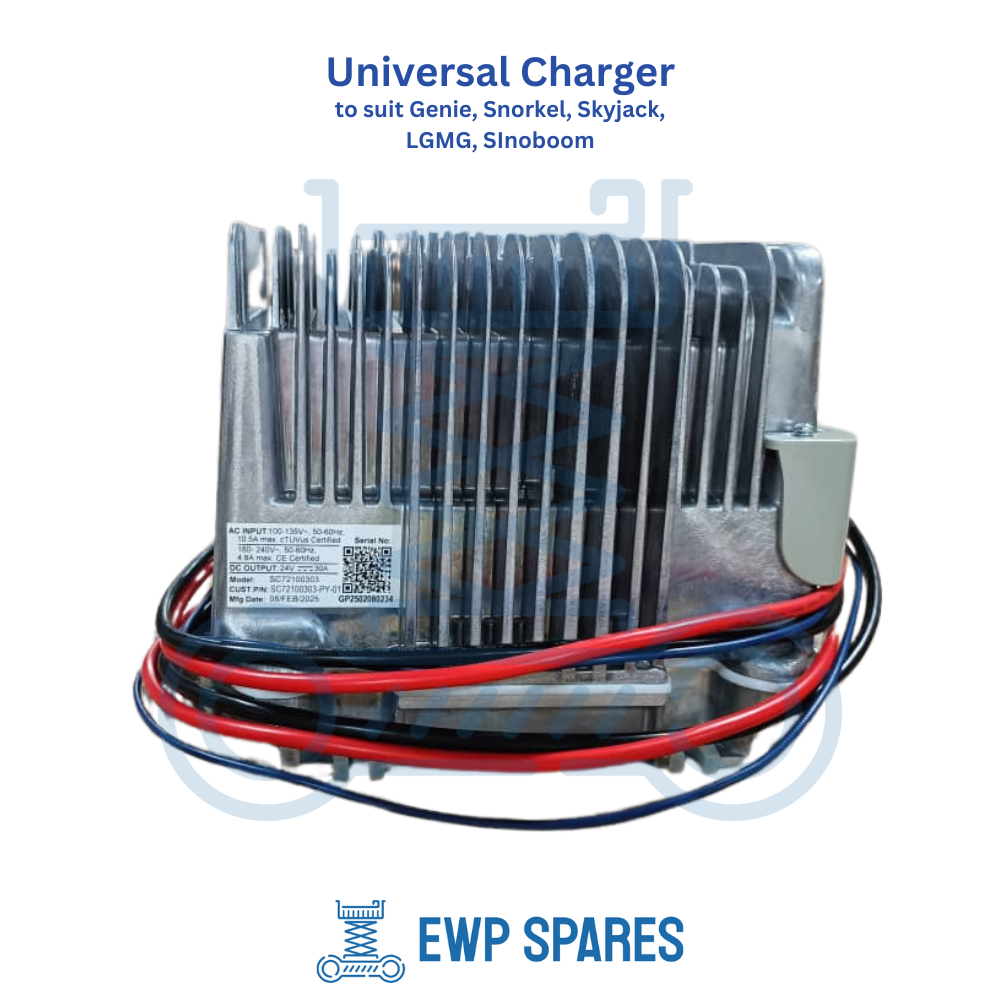

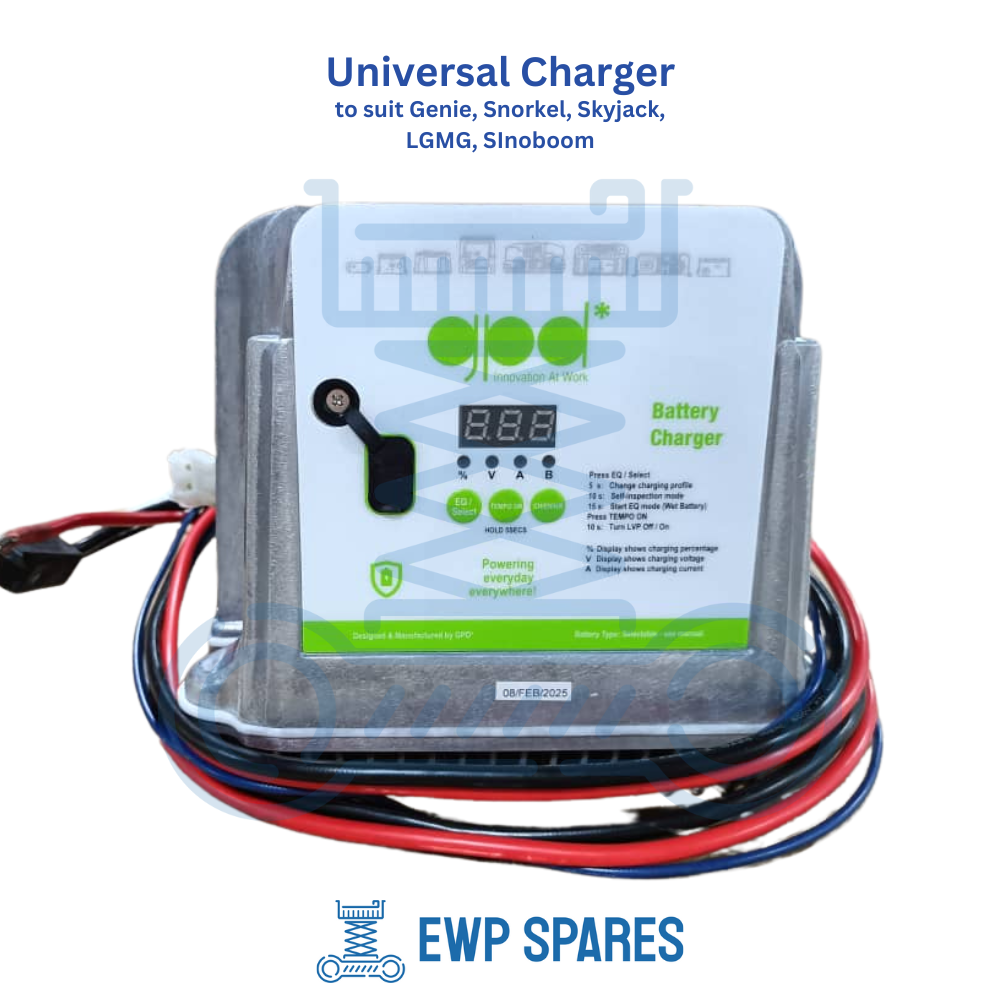

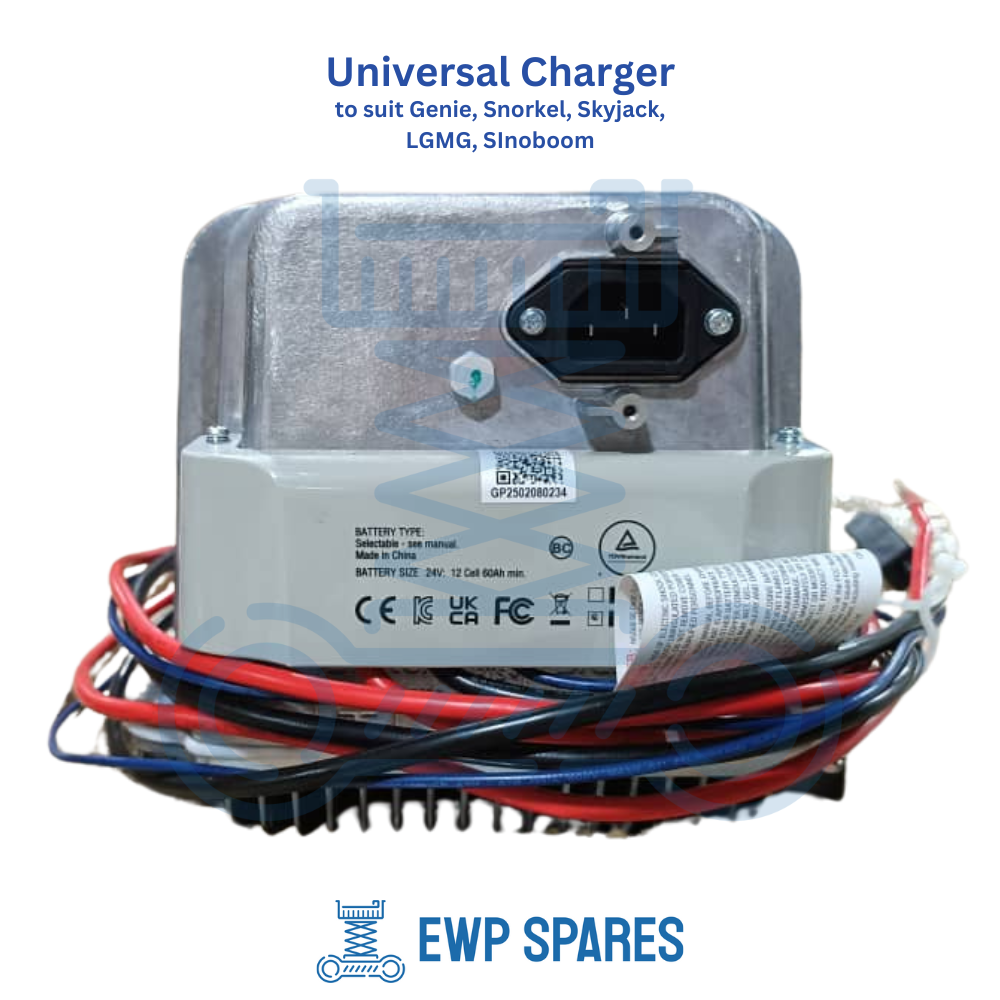

Universal 24V 750W Battery Charger for Genie Snorkel Skyjack LGMG Sinoboom
Universal 24V 750W Battery Charger for Genie Snorkel Skyjack LGMG Sinoboom
High Power Charging (Up to 30A output)
Transient Voltage Protection (Protect up to 420V)
IP66/67 Aluminium Extrusion Case (Durable and robust)
Battery EQ Mode Protection (Extend battery life)
Charging History Data Tracking (Remote data analysis)
Preset Multiple Charging Curves(Different batteries can be supported after switching)
Output Power 750W
High Voltage Protection Voltage 270~420Vac
Working Voltage 85~265Vac
Rated Voltage 100~240Vac
Rated Frequency 50~60Hz
Nominal Output Voltage 24Vdc
Max Output Voltage 34Vdc
Max Output Current 30Adc
Efficiency 94%MAX
Working Temperature -40℃~65℃
Locking Break Relay Max Current 10A@24V
Weight 4.4kg
Vibration UL1236
Humidity 90%
EMC Level Class A+Class B
Dimension 180*195*160mm
IP Protection Level IP66/IP67
USB Smart Features Yes
cETLus,CE,FCC,CEC,CB Yes
Why Choose EWP Spares?
Compatibility Tested
Our replacement parts are selected for compatibility with the listed machines. Always confirm model, serial number and part number before ordering.
Australian Owned & Operated
Based in Australia with local support and fast domestic shipping. We understand the Australian EWP market.
Expert Knowledge
Our team understands access equipment and the parts that keep it working. If you're unsure what you need, send us your machine make, model, serial number or existing part number and we'll help identify the right part where possible.
